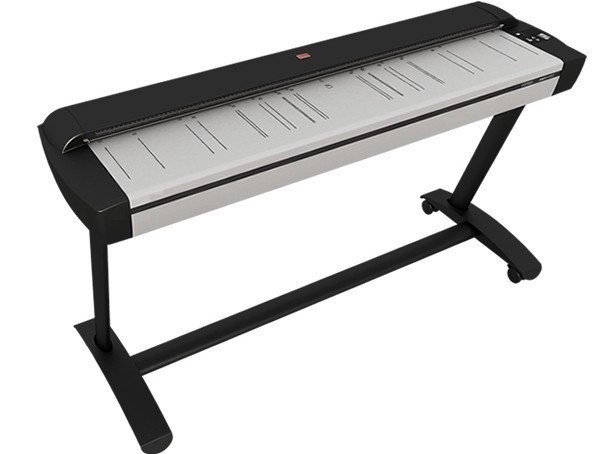

Contex HD5450 Plus 54-inch wide-format colour Scanner

The ultimate choice for extra large documents - When wide format just isn’t enough

Contex 54" wide scanner

The ultimate choice for extra large documents - When wide format just isn’t enough

The Contex HD 5450 wide format scanner is fast and steady with 12 inch/second scanning speeds. Truly a workhorse that can handle very large originals with speed and ease. The HD 5450 gives you a great performance and a high return on your investment.

A combination of 48-bit color, 4-channel CCD technology, full-size professional camera lenses and advanced image data processing algorithms creates a superior image quality. With image processing performed inside the scanner, your PC is free to run software applications more efficiently.

Thick, mounted or other sensitive or specialized documents are not a problem, for the HD5450 with Automatic Thickness Adjustment Control (ATAC) technology lets you scan documents up to 0.6“ (15 mm) thick and monitors pressure on the document surface.

Enquire now

Key Features

Ultra wide
A massive 54 inch scan width for documents of up to 56" wide
HD
High Density CCD scanning for unbeaten quality and results with 4 x 4 linear color CCD’s (R,G,B and Gray)
Perfect for

Demanding applications where high-colour & detail capture is needed at ultra wide widths.

Contact us with your questions on this product »

Product information

Scanning Speed (inch/sec.): Scanner speed while scanning 36-inch wide document.

400 dpi (Turbo) RGB Color 3.0
400 dpi (Turbo) Index Color 3.0
400 dpi (Turbo) Grayscale/Monochrome 12.0

Weight & Dimensions LxWxH 79kg 1701 x 482 x 178 mm

Productivity (documents/hour): Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans.

Maximum Scan Width 54 inch (1372 mm)
Maximum Media Width 56 inch (1422 mm)
Optical Resolution 508 dpi
Maximum Resolution 9600dpi
Maximum Media Thickness 0.6in. (15mm)
Accuracy 0.1% +/- 1 pixel
Data Capture (colour/mono) 48-bit/16-bit
Color Space sRGB
Interface USB with xDTR
Network workflow Pull / Push
Software AutoCAD(R), MicrostationTM, ArcGIStm and all other CAD, GIS and other image editing / storage applications
Fileformats4 TIF, JPG, PDF, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, others
Device Drivers 64-bit Windows OS
Nextimage, TWAIN 64-bit TWAIN application driver included for use with EDM and other imaging softwaremso-ansi-language:
