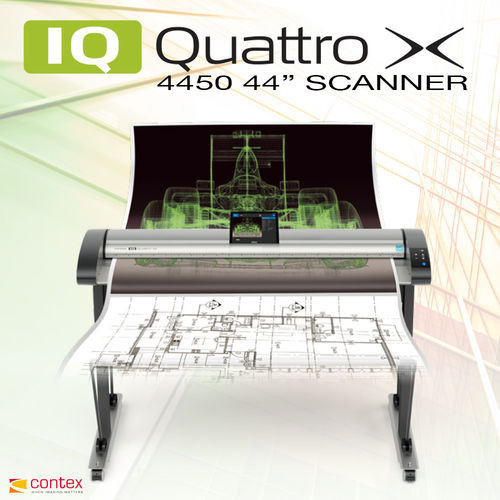

Contex IQ Quattro X 4450 44" A0 Large Format Colour Scanner

The new Contex IQ Quattro X 4450 offers optimal image quality with dual sided LED light -Eliminates wrinkles and folds in originals. Ideal for larger width technical documents and offers full colour throughput at 8.9 ips and 17.8 ips monochrome or greyscale.

Contex IQ Quattro X 4450 44" A0 Large Format Colour Scanner

The new Contex IQ Quattro X 4450 offers optimal image quality with dual sided LED light -Eliminates wrinkles and folds in originals. Ideal for larger width technical documents and offers full colour throughput at 8.9 ips and 17.8 ips monochrome or greyscale.

The new free Nextimage Remote app offers you a completely new way of working. The app saves valuable operator time by bringing all main functions essential for basic scanning and copying in front of the operator directly on the scanner. Simply download the app to a tablet or smartphone & place on top of the scanner.

Network - IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone. IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone.

FAST - With quick output times you can spend less time scanning and instead focus on what matters to you. Scan small and large documents up to A1/D-size. With detachable return guides for easy document handling returning documents to the user with rewind through scanner. Magnetic document guides can be used to support long documents and makes precise document loading easier.

Contex ClearScan - provides leading quality With new methods for diffusion you you will get the most natural light in your scans.

More Images

Related Pages

Enquire now

Key Features

Unique
CleanScan CIS modules, superfast Ethernet and award-winning Nextimage software, Contex IQ Quattro is the leading scanner for technical projects.
High Speed & Quality
Fast, crisp and sharp scans of regular and oversized documents
Perfect for

Busy technical environments who require quick throughput and higher quality with out the budget of HD scanners. With it's wider 44" width it's ideal for Railway and General Civil Engineering Drawings.

Contact us with your questions on this product »

Product information

IQ Quattro 4450

Scanning Speed (inch/sec.) Scanner speed while scanning 44-inch wide document  200 dpi RGB Colour 8.9 (Upgradable to 17.8),  200 dpi Grayscale / Monochrome 17.8

Weight & Dimensions: 24.5 kg, LxWxH: 1349 x 489 x 161 mm
Maximum Scan Width: 36 inch (914 mm)
Maximum Media Width: 38 inch (965 mm)
Optical Resolution: 1200 dpi
Maximum Resolution: 9600 dpi (interpolated)
Total number of Pixels: 64800 pixels
CIS Technology: Contex CleanScan

Maximum Media Thickness: 0.08 inch (2 mm)

Accuracy 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit / 16-bit
Color Space Adobe RGB / Device RGB / RAW RGB / sRGB
Gigabit Ethernet: with xDTR2 Included

File Formats TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended (JPX), TIF-G3, TIF-G4 and others
File compatibility AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing/storage applications
Device Drivers Windows Server 2019 64-bit, Windows 10 and Windows 8.1, 64-bit + 32 bit
Software Included Nextimage TWAIN, Nextimage Remote tablet app (free download for iOS and Android), WIDEsystem (driver)

Optional Software Nextimage 5
