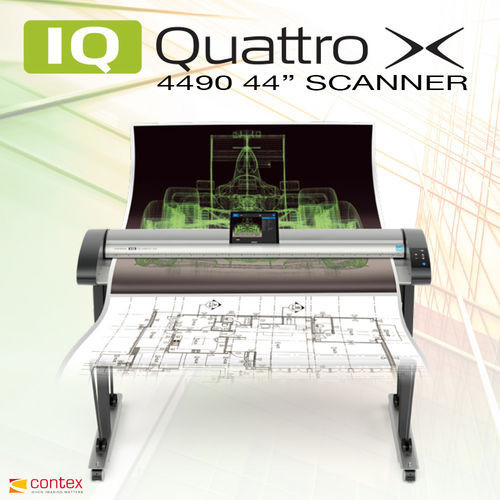

Contex IQ Quattro X 4490 44" A0 Large Format Colour Scanner

Contex IQ Quattro X 4490 offers optimal image quality with dual sided LED light -Eliminates wrinkles and folds in originals. Ideal for larger width technical documents.

Contex IQ Quattro X 4490 44" A0 Large Format Colour Scanner

Contex IQ Quattro X 4490 offers optimal image quality with dual sided LED light -Eliminates wrinkles and folds in originals. Ideal for larger width technical documents.

Ideal for precision scanning, copying and sharing, it is the leading scanner for technical projects with super fast scan speeds of 17.8 ups in both mono & colour.

The new free Nextimage Remote app offers you a completely new way of working. The app saves valuable operator time by bringing all main functions essential for basic scanning and copying in front of the operator directly on the scanner. Simply download the app to a tablet or smartphone & place on top of the scanner.

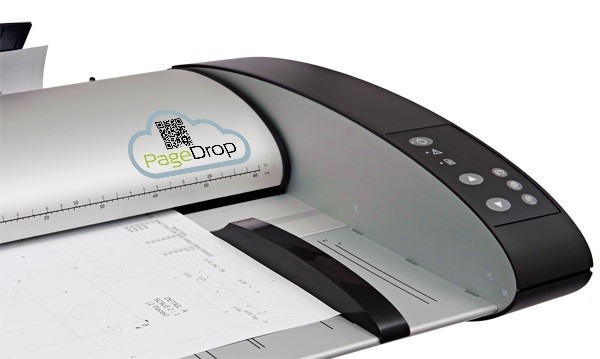

Network - IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone. IQ Quattro is networked with your entire workgroup and Cloud enabled so anybody in your project team can use it from their smartphone.

FAST - With quick output times you can spend less time scanning and instead focus on what matters to you. Scan small and large documents up to A1/D-size. With detachable return guides for easy document handling returning documents to the user with rewind through scanner. Magnetic document guides can be used to support long documents and makes precise document loading easier.

Contex ClearScan - provides leading quality With new methods for diffusion you you will get the most natural light in your scans.

More Images

Related Pages

Enquire now

Key Features

Fast
14 inch per second throughput in Colour and Monochrome / Greyscale
Wide
44 inch width gives extra versatility
Perfect for

Busy technical environments who require quick throughput and higher quality with out the budget of HD scanners. With it's wider 44" width it's ideal for Railway and General Civil Engineering Drawings.

Contact us with your questions on this product »

Product information

IQ Quattro 4490

Scanning Speed (inch/sec.) Scanner speed while scanning 44-inch wide document  200 dpi RGB Colour 17.8ips,  200 dpi Grayscale / Monochrome 17.8ips

Weight & Dimensions: 24.5 kg, LxWxH: 1349 x 489 x 161 mm
Maximum Scan Width: 36 inch (914 mm)
Maximum Media Width: 38 inch (965 mm)
Optical Resolution: 1200 dpi
Maximum Resolution: 9600 dpi (interpolated)
Total number of Pixels: 64800 pixels
CIS Technology: Contex CleanScan

Maximum Media Thickness: 0.08 inch (2 mm)

Accuracy 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit / 16-bit
Color Space Adobe RGB / Device RGB / RAW RGB / sRGB
Gigabit Ethernet: with xDTR2 Included

File Formats TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended (JPX), TIF-G3, TIF-G4 and others
File compatibility AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing/storage applications
Device Drivers Windows Server 2019 64-bit, Windows 10 and Windows 8.1, 64-bit + 32 bit
Software Included Nextimage TWAIN, Nextimage Remote tablet app (free download for iOS and Android), WIDEsystem (driver)

Optional Software Nextimage 5
