Contex SD One+ 36 A0 Wide-Format Scanner

A 64 bit entry level A0 wide-format colour scanner designed for light low volume use environments.

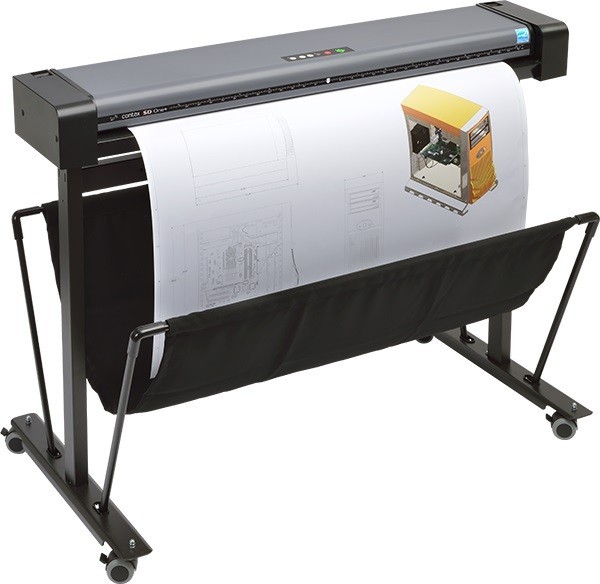

Contex SD One+ 36 with stand

A 64 bit entry level A0 wide-format colour scanner designed for light low volume use environments.

Offering 36” wide 600 dpi CIS color scanning. With full colour throughput at up to 3.8 ips and up to 3.8 ips in monochrome and greyscale.

Straightforward operation through the flexible control panel right on scanner, SD One+ is the first true desktop large format scanner with strong features. Save space and time scanning oversized engineering and construction drawings in-house.Easy to fit into your office directly on your desk, or with the optional scanner (as pictured) and document basket.

Capture and improve your originals with the Contex SD One+, Scanning software included so you can edit and improve your originals.

Related Pages

Enquire now

Key Features

Compact
small footprint and weighing in at just 11.5 kilos
Low TCO
Low acquisition cost
Free Software
Basic scanning software included, can be upgraded to Next image
Perfect for

Design offices in Construction or Engineering where occasional scanning of original drawings is required. Ideal for low volume use.

Contact us with your questions on this product »

Product information

Maximum Scan Width: 36 inch (914 mm)
Maximum Media Width: 38 inch (965mm)
Weight: 11.3 kg
Dimensions: 1158 x 231 x 124 mm, 11.3 kilos


Scan speed (colour and monochrome)​
150 dpi 3.8 inch per second
300 dpi 1.9 inch per second
600 dpi 1.0 inch per second

Other specifications  Optical Resolution 600 dpi Maximum Resolution 600 dpi
Total number of Pixels 15552 pixels
Contex CFR 2) Yes
Maximum Media Thickness 0.03 inch / 0.75mm
Accuracy 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit
Color Space sRGB (24 bit) / Grayscale (8 bit) / Monochrome (1 bit)
Connectivity USB with xDTR
Network workflow Pull / Push
Energy Star compliant
Software  Contex applications create industry standard raster file formats which can be used in any CAD or G IS applications - AutoCAD® , MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing / storage applications
Operating System 64-bit Windows 8, Windows 7 and Vista
Scanning Software Nextimage FREE file scanning software included with the scanner. Easy creation of TIFF, JPG, PDF and PDF/A files and
integration with Cloud destinations like Google Drive, Box.com, Dropbox, etc.
Upgradable scanning software
Nextimage Scan+Archive. Full featured scanning software incl. multipage (PDF, PDF/A and TIFF) and full image quality controls.
Nextimage Repro. Full featured scanning / copying software incl. built-in printer drivers and full color control
