HP Designjet T830 24-in (610-mm) A1 Multifunction Printer F9A28D

Copy, Print and Scan your A1 A2 and A3 Construction drawings on the worlds first affordable entry level A1 MFP plotter.

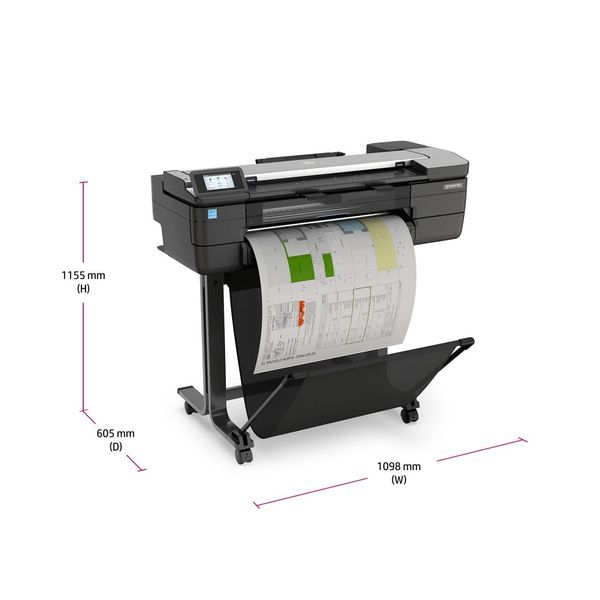

HP DesignJet T830 A1 Multi-functional Plotter

Copy, Print and Scan your A1 A2 and A3 Construction drawings on the worlds first affordable entry level A1 MFP plotter.

The HP Designjet T830 24" A1 printer brings a New benchmark in multi-functional wide-format printing and scanning.

This A1 full colour plotter is ideal for smaller workgroups who require the functionality of a production machine but without having the volume needs of a larger work group.

Aimed squarely at low volume small work groups & designed to deliver up to A1 (24 inch maximum width) from a single on-line roll feed which can take upto a 50 meter length roll. It can also deliver smaller cut sheets from an integrated paper tray.

Scan & Colour Copy Function

The HP Designjet 24 inch mfp features a slimline Scanner to provide scanning to file and for direct copying, simply slide your original in to the scanner to produce a copy and state the number of copies required.

You can easilly scan to a network destination.

Cut Sheet Tray

The integrated media tray delivers A3 cut sheets, ideal if you want to load up with presentation media for new projects and proposals.

Larger Sheets can be delivered from the 50mtr online roll feed and autmatically cut

Easy to use control Panel

An easy to navigate large control panel allows for simple scan and copying functions, as well as all the normal controls you'd expect such as ink and machine status, scroll down to select media types to maximise print quality.

Choose 40ml 130ml or even 300ml Inks

The new 728 ink gives a choice between keeping expenditure low on rarely used colours or loading with extremely economical 130 or even 300 ml inks

Ideal if you only want to print B+W or just the odd colour line drawing, but if you need full colour renders then you have a high capacity option.

Setting a bench mark for multi-functional wide-format Printing.

The CAD and Technical market has screamed out for years for an affordable A1 device to provide both Colour Plotting and wide-format scanning / copy. The new T830 24" mfp delivers all the features low volume environments demand including a compact footprint at a cost which is over 30% less than alternatives.

Related Pages

Buy Now

Key Features

A1 All-in one MFP
Copy, Scan, Print A1 A2 A3 in Full Colour
Small Footprint
Compact footprint, ideal for tight spaces
lower cost per ML than other A1 Designjets with choice of big and small inks
Perfect for

any construction or manufacturing design office or low volume high street copy shop.

Contact us with your questions on this product »

Product information

Line drawings: Print speed 26 sec/page on A1, 81 A1 prints per hour

Print resolution:  Up to 2400 x 1200 optimized dpi

Media Handling: Sheet feed, roll feed, input tray, media bin & automatic cutter

Scan Scan speed:  Colour up to 3.81 cm/sec (1.5 in/sec)  Grayscale: up to 11.43 cm/sec (4.5 in/sec)
Scan/copy resolution 600 dpi
Maximum scan Size: 610 mm x 2.77 m (24 x 109 in)

Connectivity Interfaces: (standard) Gigabit Ethernet (1000Base-T); Wi-Fi 802.11b/g/n; Wi-Fi Direct
Print languages: (standard) TIFF, JPEG, CALS G4, HP PCL 3 GUI, HP-GL/2, HP-RTL, URF
Printing paths: Windows and Mac printer drivers, Apple AirPrint, HP Print Service
Plugin for Android, HP Print for Chrome app for Chrome OS
