SmartLF SC 36 Xpress

A well-proven, innovative technology for great wide format image quality.

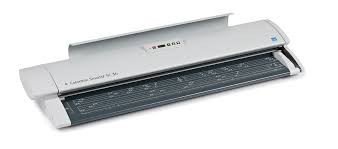

Colortrac SC 36 scanner

A well-proven, innovative technology for great wide format image quality.

SingleSensor  Colortrac invention that combines CIS elements and LEDs in a single line for maximum scan accuracy and optimal illumination.

Reliable and affordable scanning with a fast return on investment that gets the job done in ‘super-fast’ time with no stopping or waiting.

Incorporates a larger face-up staging platform to make loading documents into the scanner faster and easier.  SC 36 Xpress is the first Colortrac scanner designed specifically to auto-size documents face-up in the centre of the scanner, a change which helps the operator to see what they are scanni ng and also to load creased documents more effectively.  For documents conforming to standard drawing sheet sizes (manual mode) the scanner can accept media side & center using SmartWorks Pro or at the side only using the SmartWorks TOUCH software.  The straight-through paper path of SC 36 has a maximum media width of 27 inches (686mm) and accepts documents and maps up to 0.08 inches (2 mm) in thickness.  This is more than enough to meet the requirements of AEC, CAD, GIS and the majority of work done by copy shop or service bureau.

There are three SmartLF SC 36 Xpress large format scanner models with performance levels and features optimised for different applications. If requirements change, the m (monochrome/greyscale) and c (colour) models can be easily remotely upgraded to a higher level using a simple emailed scanner upgrade tool. The e (enhanced) upgrade offers the highest colour scan speed. Monochrome/greyscale scan speeds are identical across all upgrades.

Related Pages

Enquire now

Key Features

Dynamic Document Feed
delicate or fragile media such as newspaper and old plans can be safely and accurately scanned without problem. Perfect fo
SuperSpeed USB 3.0 interface
With a dramatic x10 increase in the internal data transfer rates, the new USB 3.0 interface works at up to 5Gb/sec
Perfect for

high quality scans of wide format maps, site plans, engineering drawings, architectural renderings and many other technical documents.

Contact us with your questions on this product »

Product information

Specifications

Weight & Dimensions (WxHxD) 24 kg, 115 x 15.2 x 38.1 cm

Optical Resolution 1200dpi

Extended resolution Linear interpolation from 100 to 9600dpi in 1 dpi steps

Max Scan Width 36in (91.4cm)

Max Media Width 38in (96.5cm)

Max Media Thickness 0.08in (2mm)

Min Document Size 6.0in (152mm) x 6.0in (152mm)

Max Scan Length

Depends on file format and software application. See scanner software information

Accuracy +/-0.1% +/-1 pixel

Auto Size Display Detects and displays the width of the document as it is loaded

Data Capture (color/grayscale)  48 bit / 16-bit
