HP DesignJet T230 (5HB07D) & T250 (5HB06D) 24" A1 Plotters (2025 Edition)

The HP DesignJet T230 & T250 (2025 Edition) 24-inch printers are compact large-format solutions ideal for technical professionals and designers. Both offer precise line accuracy vibrant colours fast print speeds & flexible connectivity.

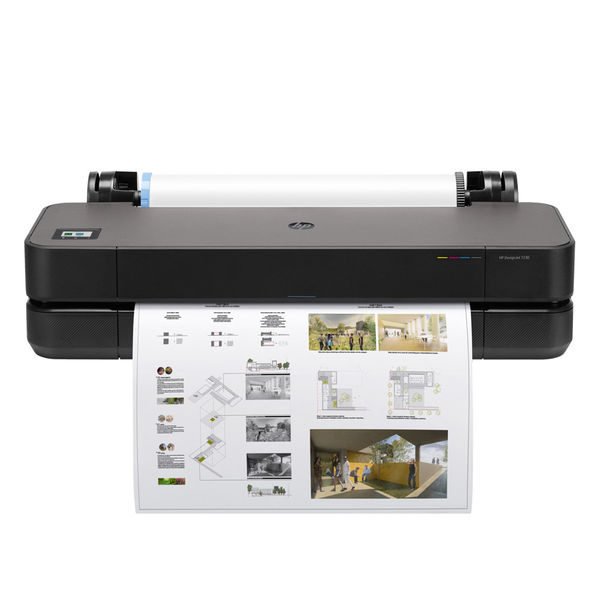

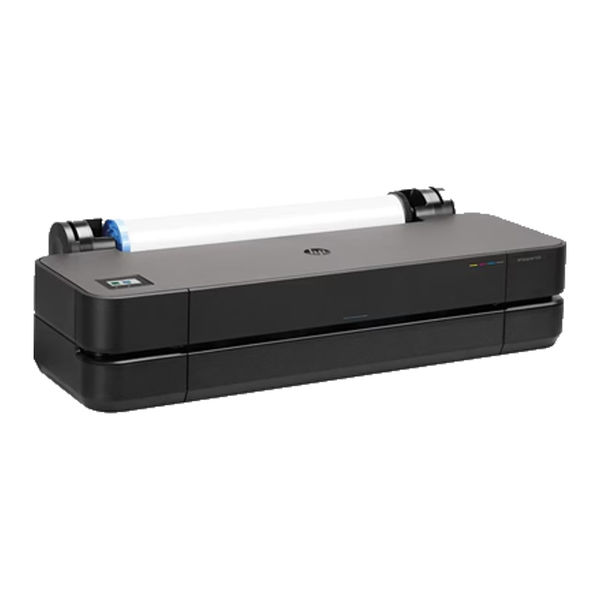

HP DesignJet T230 MAIN IMAGE FRONT

The HP DesignJet T230 & T250 (2025 Edition) 24-inch printers are compact large-format solutions ideal for technical professionals and designers. Both offer precise line accuracy vibrant colours fast print speeds & flexible connectivity.

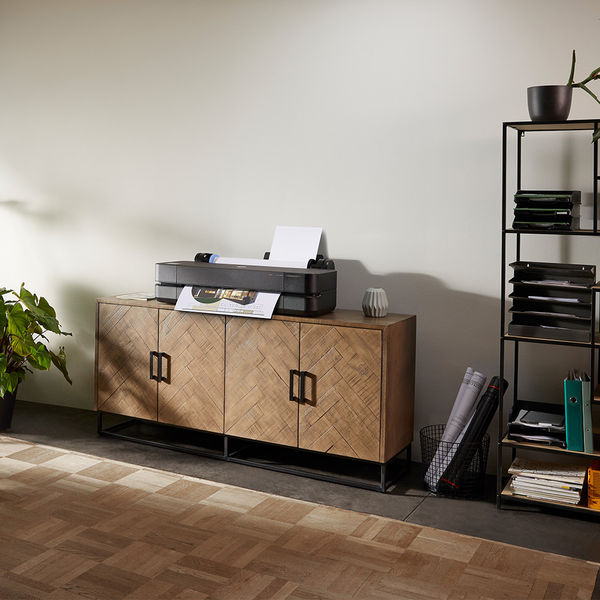

The T250 provides even faster output making both models perfect for small offices studios or site cabins where space and performance are key.



Compact large-format printers ideal for professionals working in architecture, engineering or construction as well as designers who need precise technical drawings or vibrant posters. Both models support rolls up to 610 mm (24″) and deliver crisp prints with resolutions up to 2400 × 1200 dpi ensuring fine line accuracy and vivid colour reproduction. Their compact size and lightweight build make them suitable for small offices, home studios or site cabins where space is at a premium.

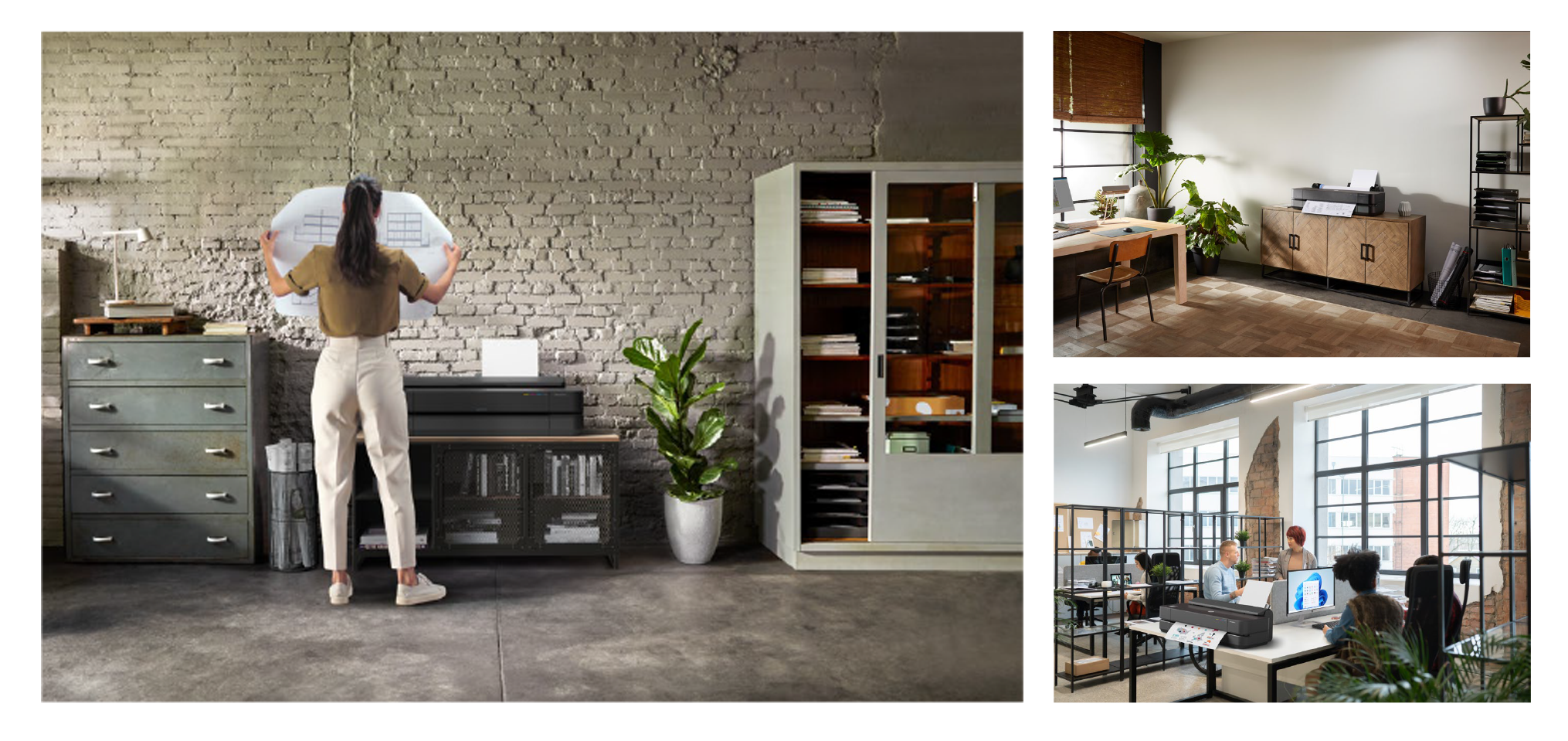

HP DesignJet T200 LIFESTYLE COLLATE

The DesignJet T230 is designed for users with moderate print volume needs offering A1 prints in around 35 seconds capable of delivering up to 68 A1 prints per hour. The DesignJet T250 while sharing the same physical dimensions and features offers enhanced productivity with faster A1 print speeds of about 30 seconds supporting up to 76 A1 prints per hour.

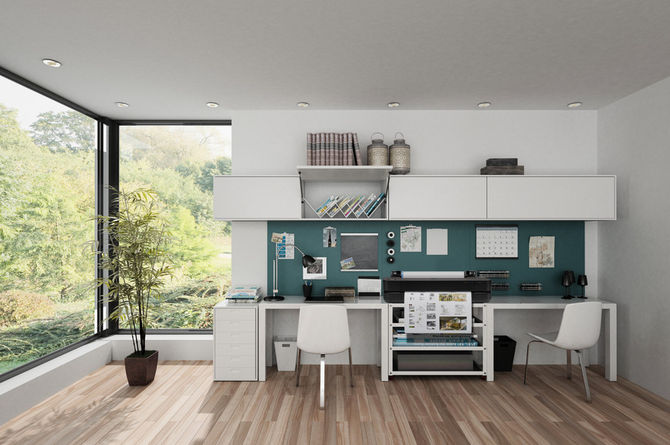

HP DesignJet T230 office enviroment

Both printers are equipped with 512 MB memory feature intuitive controls and support a wide variety of media including technical papers films and self-adhesive materials. Both models come with Wi-Fi Wi-Fi Direct Ethernet and USB connectivity making them flexible and easy to integrate into any workspace. They are compatible with HP Smart App and Click software allowing users to print from virtually anywhere using mobile devices. The printers also offer environmentally conscious design being manufactured with up to 40% recycled plastic and carrying certifications for energy efficiency.

HP WOLF SECURITY BANNER

Security is also a key focus. HP Wolf Essential Security provides baseline protection against unauthorised access and cyber threats, ensuring sensitive design files and network activity remain secure. For firms managing multiple devices or working remotely, this level of built-in protection is a significant benefit.

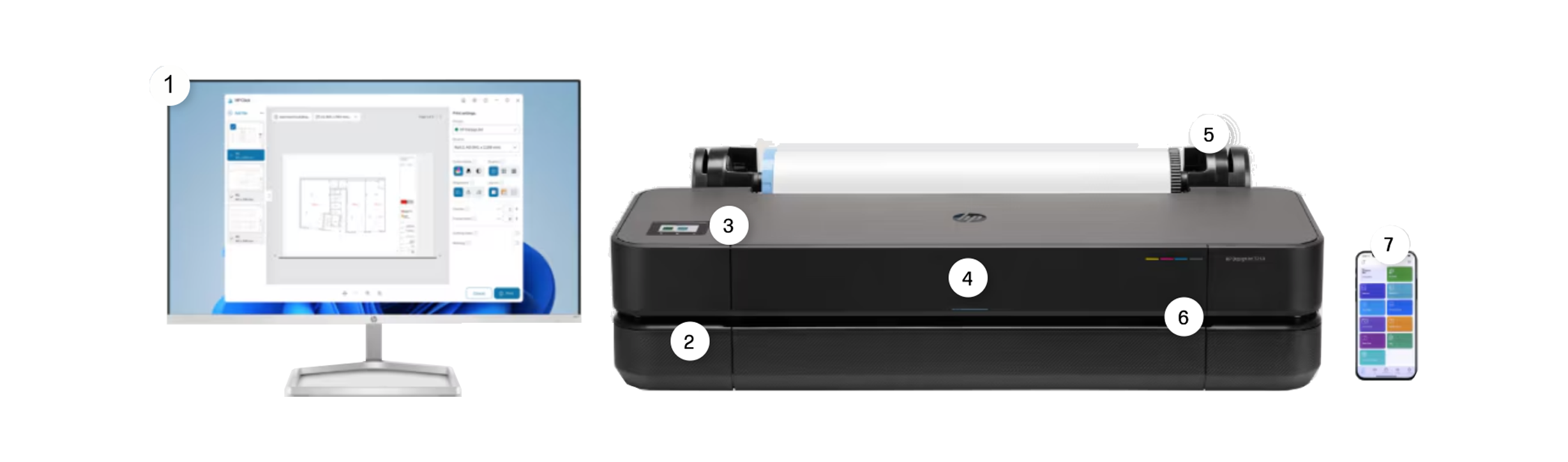

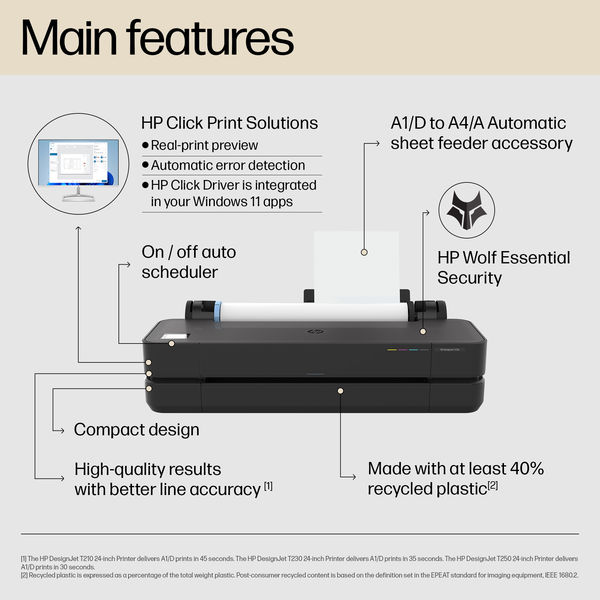

hp t200 (2025 edition) annotated features

1. HP CLICK-PRINT SOLUTIONS:

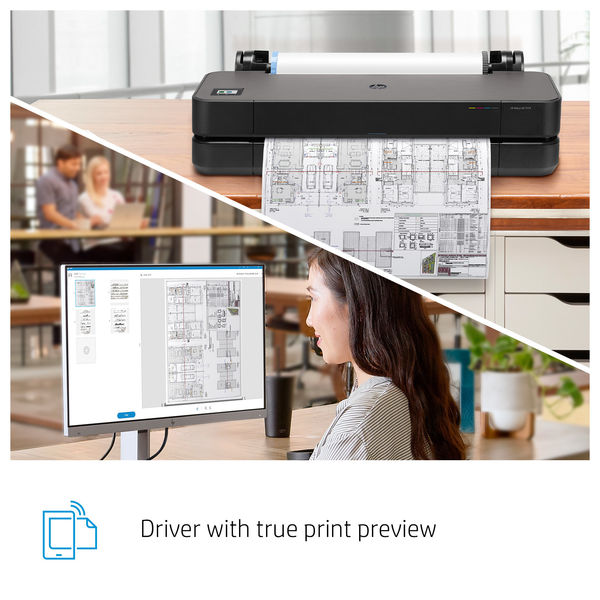

Enjoy a radically simplified printing experience with intuitive job submission via the HP Click driver and desktop application.

2. ENVIRONMENTALLY RESPONSIBLE DESIGN:

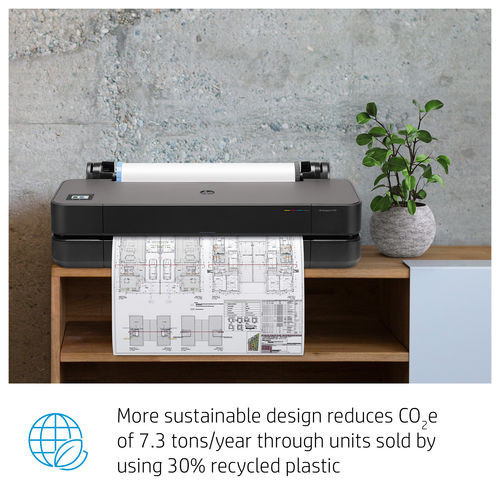

Constructed with at least 40% recycled plastic and featuring the first HP large-format plotter to include recycled metal components.

3. ENERGY EFFICIENT OPERATION:

Reduce energy use by up to 65% with the automatic on/off scheduler and benefit from optimised ink maintenance processes.

4. HP WOLF ESSENTIAL SECURITY:

Provides essential protection to help safeguard your printer and plotter against everyday cyber threats.

5. A4/A TO A1/D FEEDER ACCESSORY:

An optional accessory allows seamless printing of varied paper sizes without manually changing the media source.

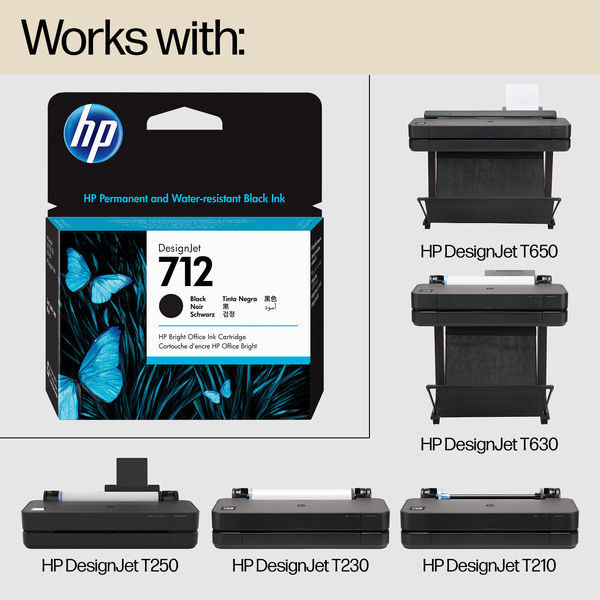

6. HP BRIGHT OFFICE INKS:

Produce high-quality prints with improved line accuracy and a wide colour gamut.

7. HP APP FUNCTIONALITY:

Send print jobs and manage your printer remotely at any time from virtually anywhere using the HP app.

SUMMARY:

The HP DesignJet T230 24” Printer offers compact, fast and accurate A1 printing with excellent sustainability credentials and built-in security. It’s an ideal choice for design professionals who need dependable performance and eco-conscious design in a modern office environment.

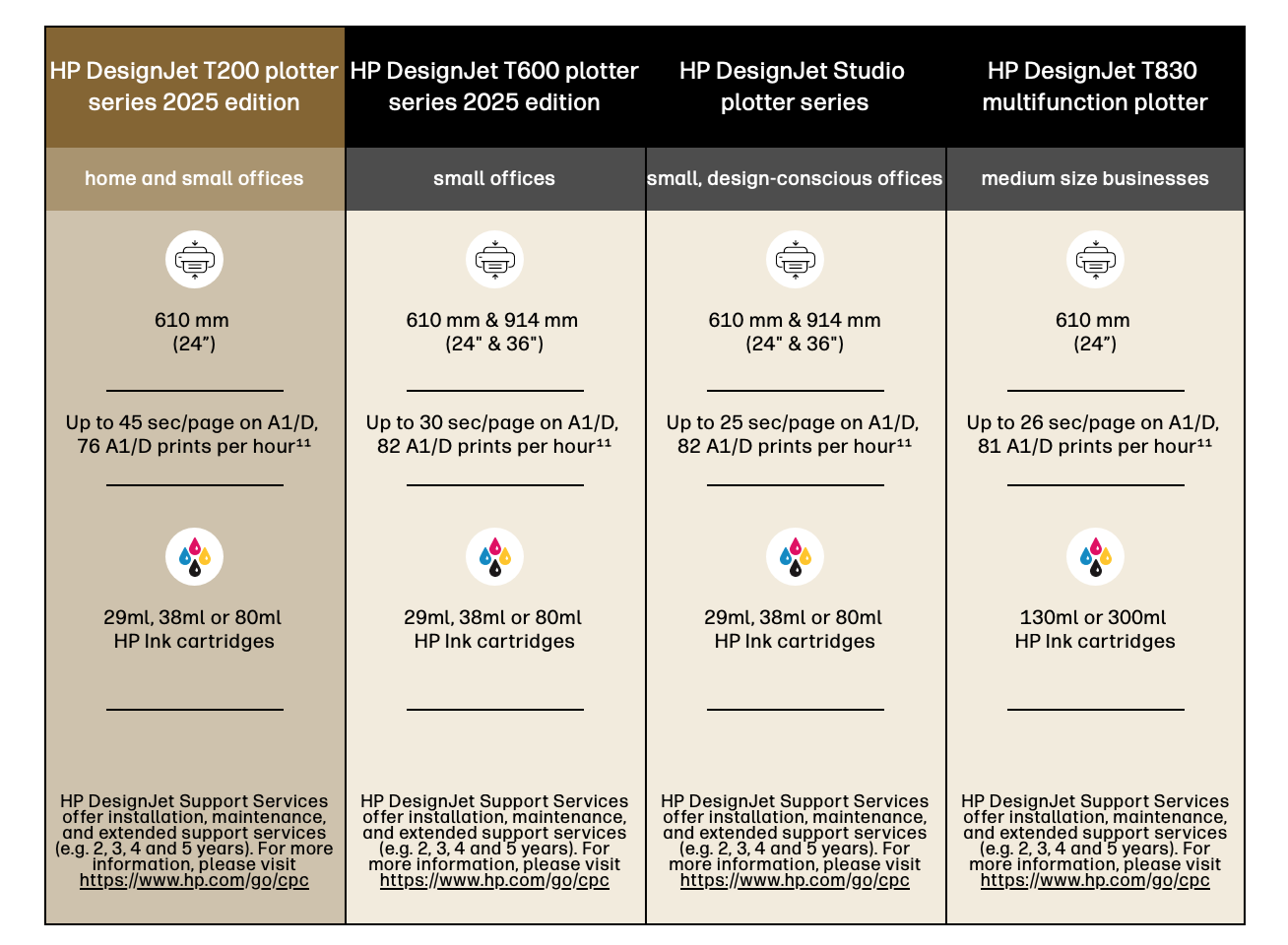

T230 VERSES OTHER MODELS

KEY DIFFERENCES BETWEEN 2025 EDITION & EARLIER MODELS:

HP DesignJet T230 (2025 Edition) & HP DesignJet T250 (2025 Edition) Compared:

Specifications HP DesignJet T230 (2025 Edition) HP DesignJet T250 (2025 Edition)
A1 Print Speed 35 sec per A1 / up to 68 A1 prints per hour 30 sec per A1 / up to 76 A1 prints per hour
Print Resolution Up to 2400 × 1200 dpi Up to 2400 × 1200 dpi
Ink Drop Size 5.5 pL (C/M/Y), 12 pL (K) 5.5 pL (C/M/Y), 12 pL (K)
Print Technology HP Thermal Inkjet HP Thermal Inkjet
Line Accuracy ±0.1% ±0.1%
Memory 512 MB 512 MB
Connectivity Ethernet, USB 2.0, Wi-Fi, Wi-Fi Direct Ethernet, USB 2.0, Wi-Fi, Wi-Fi Direct
Media Handling Rolls (279–610 mm), sheet feed, automatic cutter Rolls (279–610 mm), sheet feed, automatic cutter

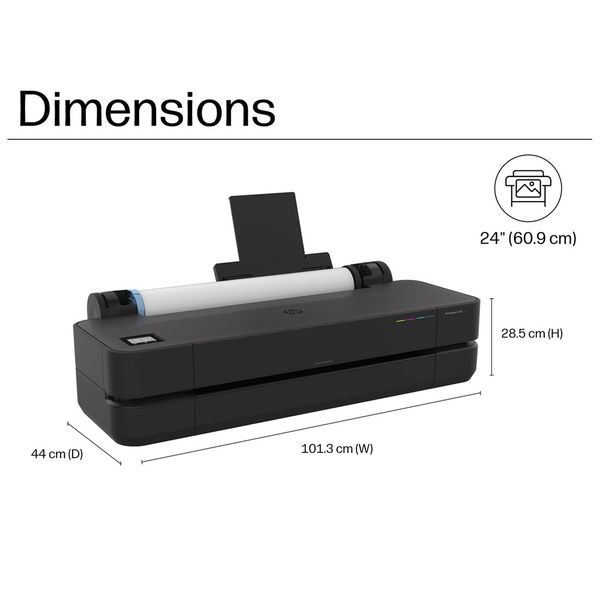

Dimensions (W × D × H) 1013 × 440 × 285 mm 1013 × 440 × 285 mm
Weight 21.5 kg 21.5 kg
Energy Efficiency ENERGY STAR, EPEAT Gold, up to 40% recycled plastic ENERGY STAR, EPEAT Gold, up to 40% recycled plastic
Warranty 1-year hardware warranty 2-year hardware warranty (region dependent)

.

More Images

Related Pages

Enquire now

Key Features

COMPACT DESIGN:
Both T230 & T250 fit small workspaces without compromising print capabilities.
FAST PRINT SPEEDS:
T230 prints A1 in ~35 seconds (68 A1/hr), T250 prints A1 in ~30 seconds (76 A1/hr).
HIGH PRECISION:
Both models deliver accurate lines to ±0.1% and fine detail with 2400 × 1200 dpi resolution.
ECO-FRIENDLY BUILD:
Both models use up to 40% recycled plastic and meet strict energy efficiency standards.
VERSATILE CONNECTIVITY:
Wi-Fi, Wi-Fi Direct, Ethernet, and USB connectivity for flexible printing options.
MEDIA FLEXIBILITY:
Handles rolls up to 24" wide, compatible with technical papers, films, photo papers & more.
Perfect for

Architectural Drawings, Engineering & Construction Plans, Geographic Information Systems (GIS), Posters & Presentations, Interior Design & Landscape plans, Educational & Training materials
