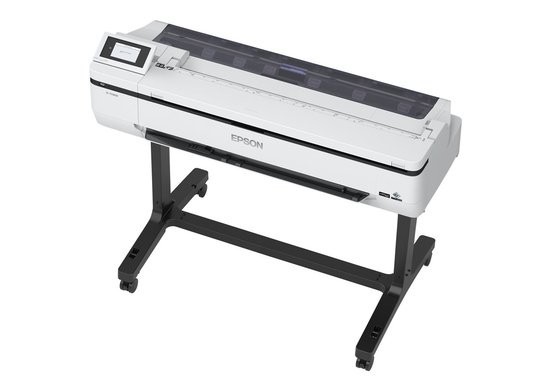

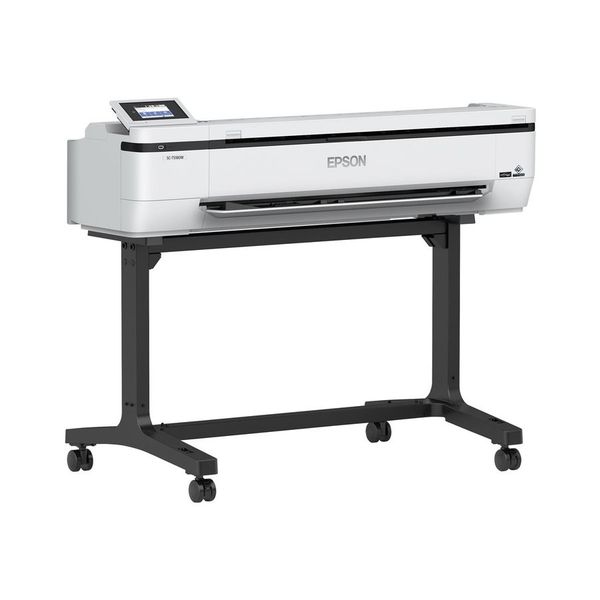

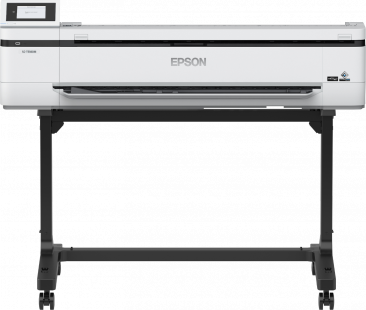

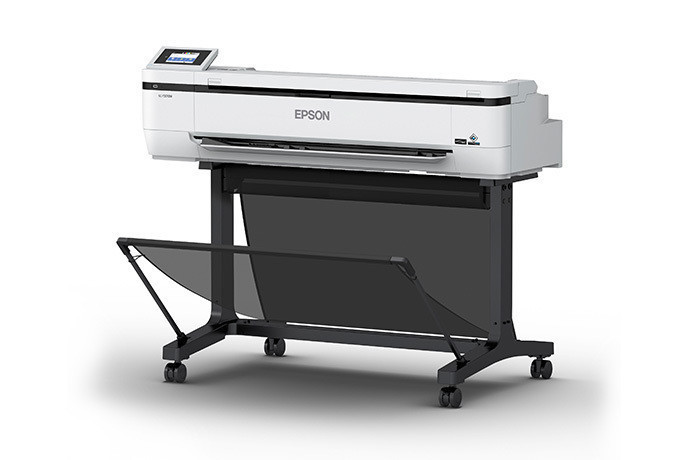

The EPSON SC-T5100M is a feature packed A0 printer, copier, scanner with the benefit of postscript functionality for scanning directly to PDF.

EPSON SC-T5100m Like HP DesignJet T830

The EPSON SC-T5100M is a feature packed A0 printer, copier, scanner with the benefit of postscript functionality for scanning directly to PDF.

With all the benefits of the highly popular smaller format A1 SC-T3100M. This multi-function printer offers a wider A0 36 inch (914mm) Print, Scan & Copy width. It’s a step up for anyone needing to print a low volume of CAD drawings without compromising on quality or features.

The media roll is loaded easily from the top of the machine & there is an intuitive 4.3" Touch Screen display to guide you through the process.

This A0 large format printer has been designed for accuracy & precision. Print and scan technical, architectural drawings, retail posters and general documents, in great detail, with ease.

The SC-T5100M features an integrated 600dpi CIS colour scanner that accurately replicates documents  into different formats and sends them securely to multiple destination options, as well as being able to scale originals from 25 to 400%. Supporting file data encryption: users are able to scan to file, secure mail, or secure server.

Printing Method - 4-colour inkjet printer

All-in-One Functions - Print, Scan, Copy

Ink Technology - Pigment ink, Ultrachrome® XD2

Colours - Matte Black, Cyan, Yellow, Magenta

Minimum Droplet Size - 4 pl

Nozzle Configuration - 800 Nozzles per Color

Printing Resolution - 2,400 x 1,200 DPI

Emulations - PDF emulator

Features - Direct scan-to-print without PC, Direct print from USB

Interfaces - Hi-Speed USB - compatible with USB 2.0 specification, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac

More Images

Related Pages

Enquire now

Key Features

Multi-function 36-inch technical printer
3-in-1 solution (print, copy and scan)
Colour Scanning
Scan at 600dpi up to 2.72M in length. Scan to encrypted PDF, PDF, JPEG, TIFF from network or USB
Pigment Ink
Pigment Ink - Water resistant, ideal for use outdoors
Easy to share
Scan to USB, Mail (secure), FTP server (secure), Network Folder
Understated ergonomic design
Discreet design to suit most environments
Perfect for

AEC or Manufacturing users with a low volume, or even place directly on a Construction Site. It's low cost often makes it much cheaper than sending prints out or an ideal replacement for an old black & white copy where there is low volume but copying is still required.

Contact us with your questions on this product »

Product information

Power consumption - 24 Watt, 11 Watt (economy), 2 Watt (standby), 0.2 Watt (Power off)

Product dimensions - 1,268‎ x 696 x 974 mm (Width x Depth x Height)

Product weight - 54 kg

Mobile and Cloud printing services - Apple AirPrint

What's in the box - AC cable, Ink cartridges (1 black, 1 three-colour cartridge), Maintenance box, Setup guide, Software (CD), Spindle Unit(s), Warranty document
