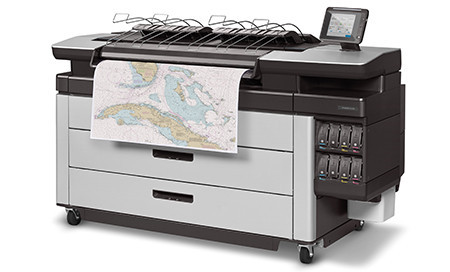

HP PageWide XL 5100 40-in Multifunction Printer

Full Colour High-Speed multi-functional copy, scan and print all-in-one wide-format plan printer

HP Pagewide XL 5100

Full Colour High-Speed multi-functional copy, scan and print all-in-one wide-format plan printer

The HP Pagewide XL 5100 mfp delivers lightening full colour or monochrome output  from network printing or as a copier at 20 A1 prints per minute and with a maximum print width of 40 inches its possible to print A0+ width with lengths of 30 meters on graphics and 200 meters on CAD output.

Ideal for a multitude of applications from busy drawing offices to centralised printers who need posters, GIS & broader applications.

Cut total production costs from legacy LED

Achieve up to 30% savings in total production costs. Print monochrome and colour technical documents at the same or lower cost than comparable LED printers and do it all with one space-saving device for both monochrome and colour whilst achieving  up to 5 times lower energy consumption than comparable LED printers.

Get instant monochrome and colour prints fast


• Up to 20 A1 pages/minute print speed with quick 28-second first page out


• Print unattended—production pre-flight finishing solutions, up to 4 rolls, 8 x 400-  ml inks online with auto-switch

• Streamlined PDF workflow with HP SmartStream software, HP Click for easy batch printing

Related Pages

Enquire now

Key Features

Market leading Service
Stanford Marsh are the only Pagewide service provider with ISO9001 cover and with certified engineers located through out the UK
Unrivaled Speed
20 A1 per minute full colour with prints up to A0 width
Functional
Print, Copy, Scan & add optional folding for a complete finish of drawings, add an XY cutter for high speed edge to edge posters
Perfect for

Busy print shops who want fast output diverse applications and low cost, Central construction offices where peak project demands and critical deadlines must be met. GIS and mapping / chart applications

Contact us with your questions on this product »

Product information

Dimensions (w x d x h)

Printer1960 x 800 x 1303 mm

MFP  1960 x 839 x 1303 mm

High-capacity Stacker 101 x 125 x 108 cm

Shipping 2180 x 1068 x 1764 mm

Weight Printer 415 kg MFP 430 kg High-capacity Stacker 140 kg

Shipping printer 521 kg Shipping MFP 546 kg

Connectivity Interfaces

TCP/IP, BootP/DHCP, USB 2.0 host (certified)

Printing paths -  HP SmartStream software (optional) HP Click software (optional) HP Universal Print Driver (HP-GL/2 and PS) HP PageWide XL print drivers (PDF, HP-GL/2, and PS)

Stanford Marsh is part of the Stanford Marsh Group – the UK’s market leader in providing design technology needs
